BTS-115

Meridian Mfg. - BTS-115
Features
Applications
Specifications
Accessories

The Convey-AllTM Bean Tenders are a fast, effortless way to fill any planter; including centre fill models. The unload conveyor has all the swing and reach required to fill a 16 row, 30” spacing planter, or a 24 row, 22” spacing planer with one setup.

Every bean tender comes with a 2-button remote throttle control. A full remote control is available for all the tenders, except the PT-100. The deck mount frame offers the convenience of mounting your tender onto a trailer, truck bed, or order your tender mounted on a custom Convey-AllTM trailer.



Features Show / Hide more information

1. 5.5 hp gas engine
2. 2 button remote control
3. Rear ladder

Applications Show / Hide more information

Seed

Specifications Show / Hide more information

Model PT-100 BTS-115 WT-295 BTS-2950 BTS-410
Conveyor Size 21’, 8” Tube, 10” Belt 18’, 8” Tube, 10” Belt 20’, 10” Tube, 16” Belt 21’, 8’ Tube, 10” Belt 8’ Tube, 10” Belt
Overall Length 32’ 2” 22’ 2” 25’ 3” 24’ 7” 26’ 1”
Hopper Length 8’ 3” 7’ 11’ 11” 11’ 11” 14’ 6”
Hopper Height n/a 7’ 5” 8’ 7” 8’ 5” 9’ 3”
Hopper Width n/a 7’ 8’ 5” 8’ 5” 8’ 5”
Discharge Height 8’ 11” 8’ 3” 9’ 7” 8’ 3” 8’ 5”
Conveyor Height 12’ 7” 10’ 12’ 6” 10’ 12’ 2”
Conveyor Swing 180° 90° 140° 140° 140°
Empty Weight (Trailer Not Incl.) 1550 lb 2125 lb 2950 lb 3000 lb 3250 lb
Total Units 100 115 295 295 410
Total Bushels 80 92 235 235 330

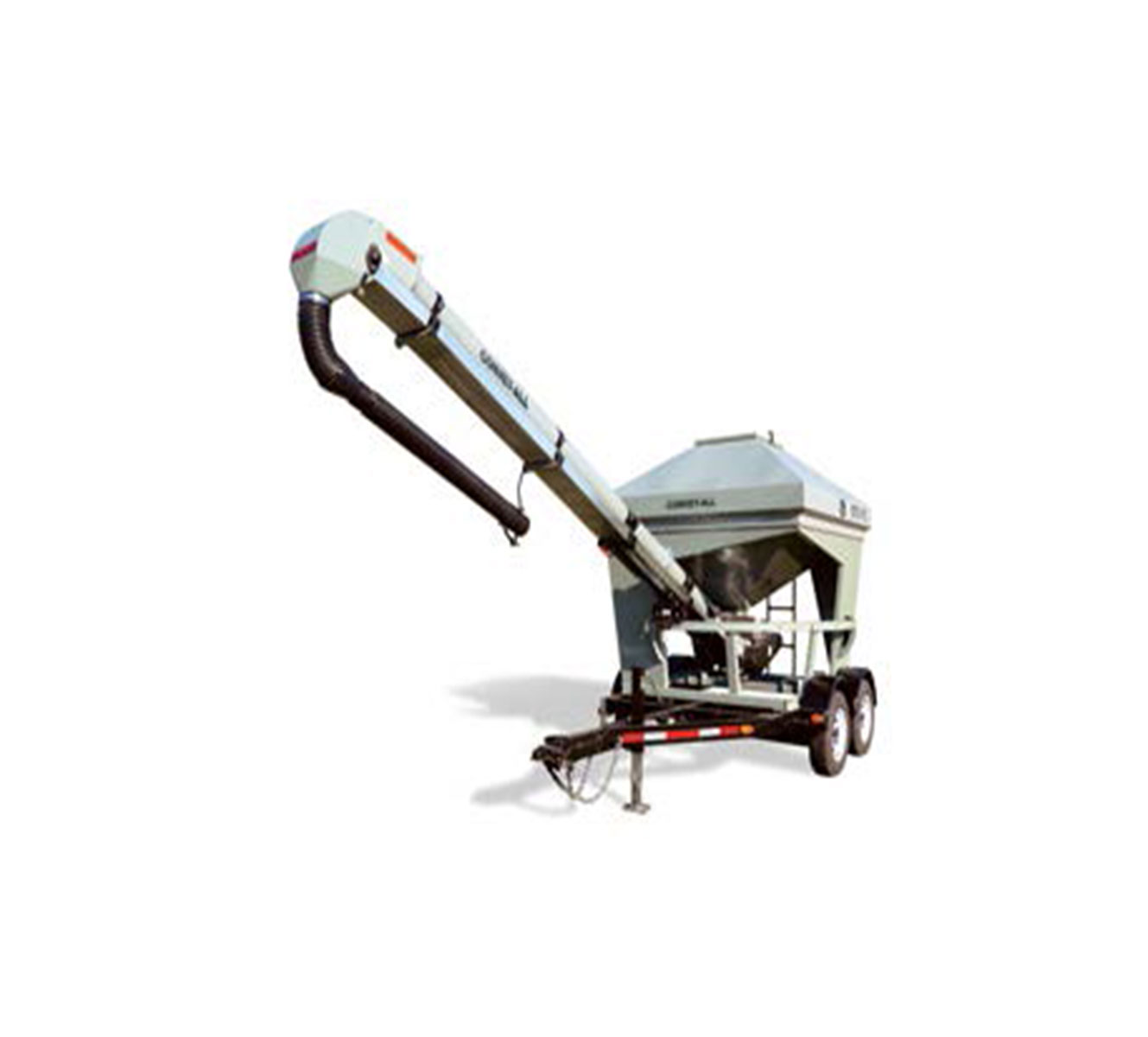

The BTS-115 Tender features a single compartment with a steel lid. It can convey 1500 lb/min.

BTS = Bean Tender-Swing | WT = Weigh Tender | PT = Pro-Box Tender


Accessories & Options Show / Hide more information

1. 3’ conveyor tube extension
2. Full wireless remote
3. Extendable downspout
4. Trailer with electric brakes
