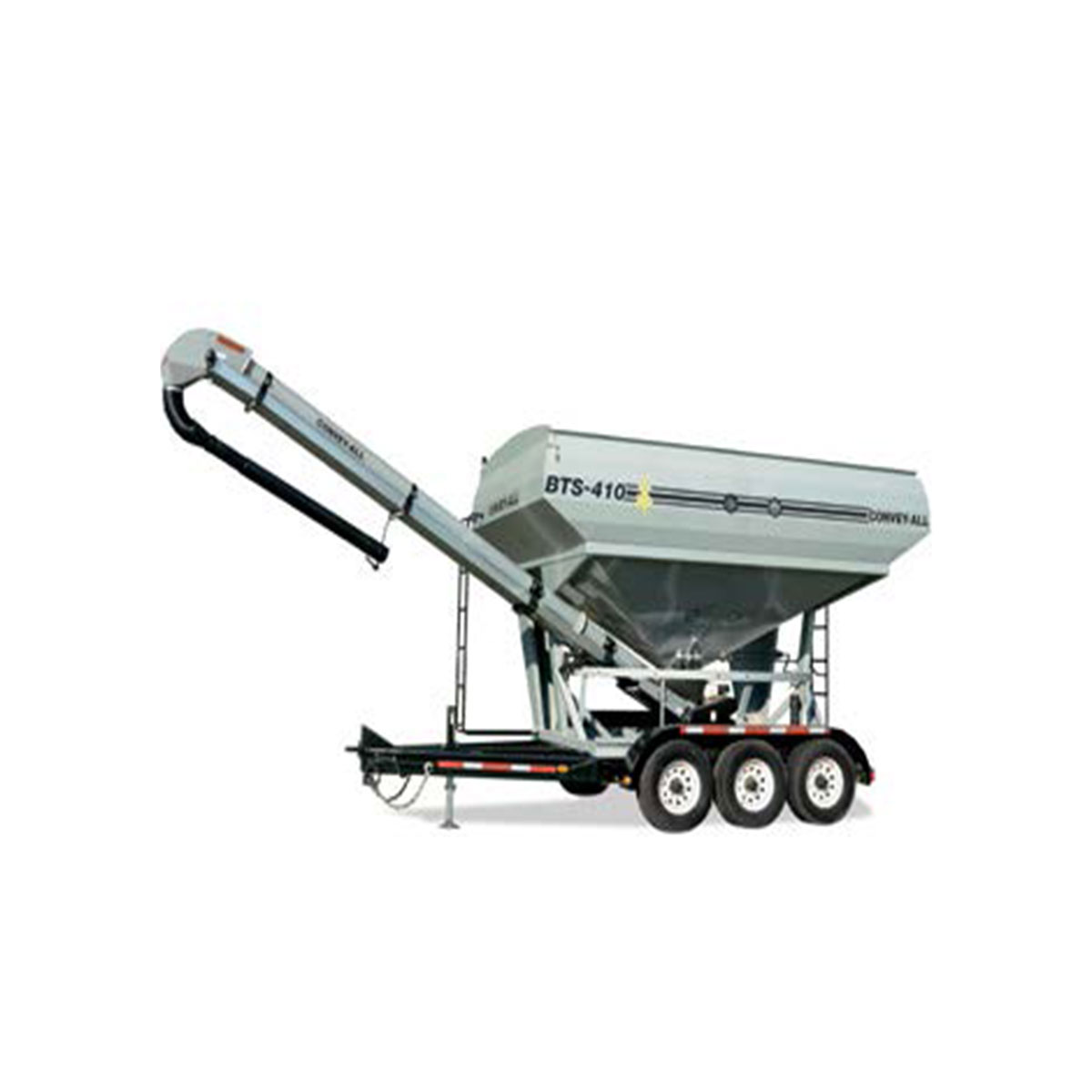

BTS-410

Meridian Mfg. - BTS-410
Features
Applications
Specifications
Accessories

Our bean tenders are designed to efficiently move grain, pulse crops, fertilizer, or any granular material. The tender can be purchased with it’s own trailer, or mounted to any flatbed truck or trailer for convenient transportation.

Fill any planter, including centre fill models, fast and effortlessly. The unloading conveyor can be swung from front to back, down the driver side.



Features Show / Hide more information

1. 5.5 hp gas engine
2. Manual roll tarp
3. 2 button remote control
4. Ladders, front and rear

Applications Show / Hide more information

1.Seed
2.Fertilizer
3.Load planters

Specifications Show / Hide more information

Model PT-100 BTS-115 WT-295 BTS-2950 BTS-410
Conveyor Size 21’, 8” Tube, 10” Belt 18’, 8” Tube, 10” Belt 20’, 10” Tube, 16” Belt 21’, 8’ Tube, 10” Belt 8’ Tube, 10” Belt
Overall Length 32’ 2” 22’ 2” 25’ 3” 24’ 7” 26’ 1”
Hopper Length 8’ 3” 7’ 11’ 11” 11’ 11” 14’ 6”
Hopper Height n/a 7’ 5” 8’ 7” 8’ 5” 9’ 3”
Hopper Width n/a 7’ 8’ 5” 8’ 5” 8’ 5”
Discharge Height 8’ 11” 8’ 3” 9’ 7” 8’ 3” 8’ 5”
Conveyor Height 12’ 7” 10’ 12’ 6” 10’ 12’ 2”
Conveyor Swing 180° 90° 140° 140° 140°
Empty Weight (Trailer Not Incl.) 1550 lb 2125 lb 2950 lb 3000 lb 3250 lb
Total Units 100 115 295 295 410
Total Bushels 80 92 235 235 330

The BTS-410 Tender can convey up to 1500 lb/min, and has a 50/50 split compartment.

BTS = Bean Tender-Swing | WT = Weigh Tender | PT = Pro-Box Tender


Accessories & Options Show / Hide more information

1. 18’ or 21’ long conveyor tube
2. Full wireless remote
3. Weigh scale package
4. Extendable downspout
5. Trailer with electric brakes
