CST-1550

Features
Applications
Specifications

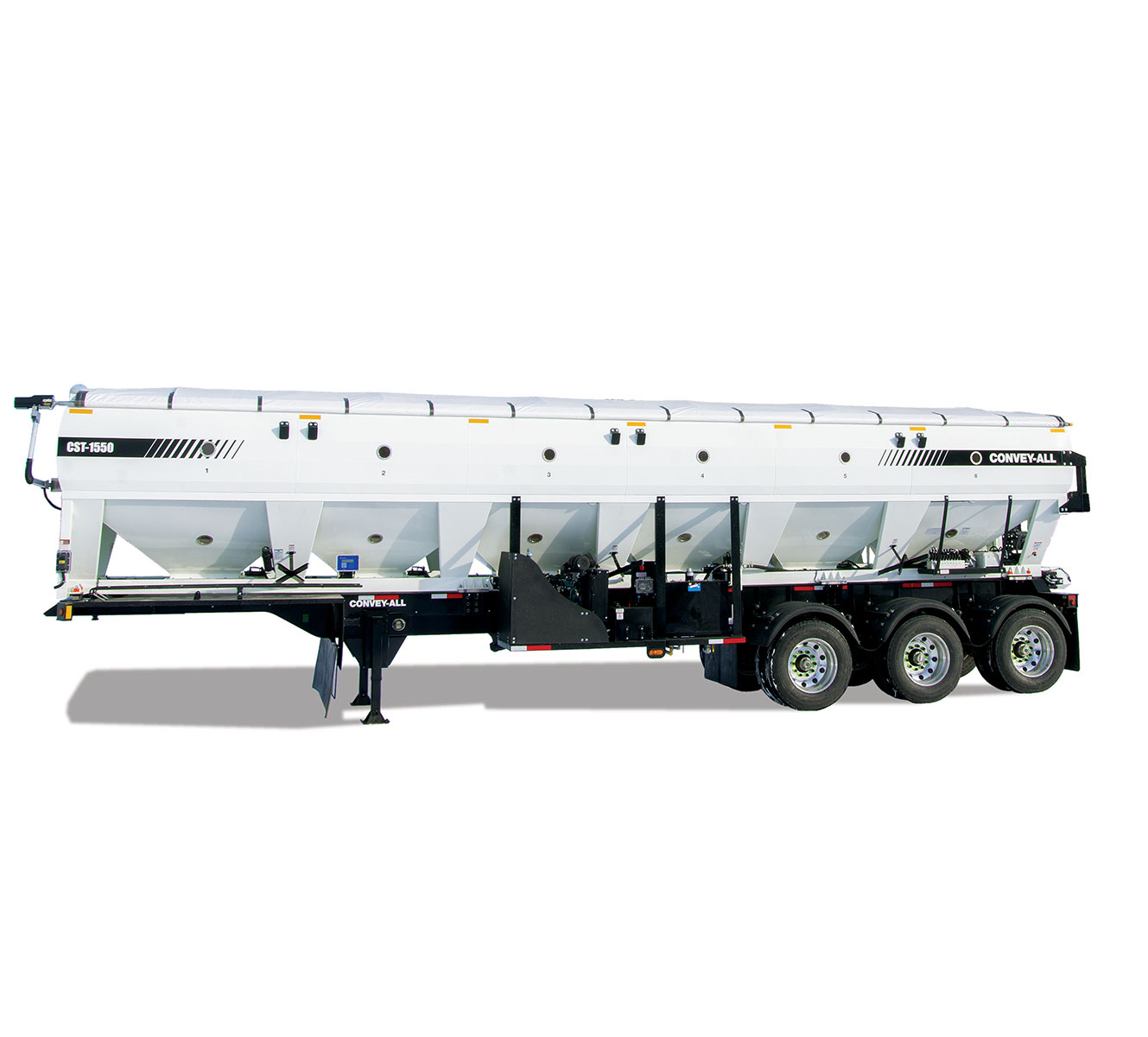

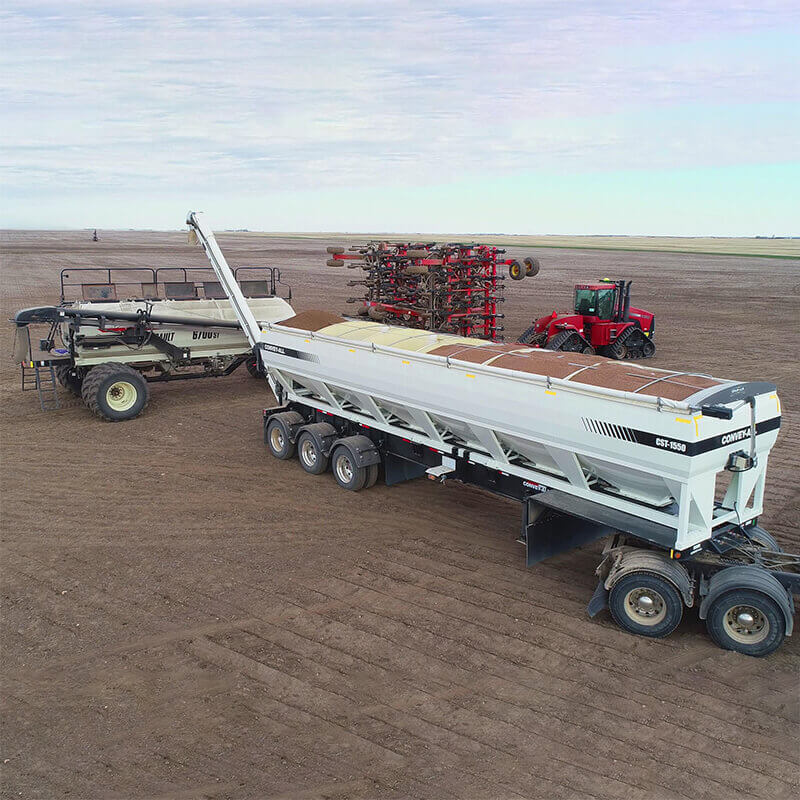

Powered by a 50 hp diesel engine, the Convey-AllTM CST-1550 is equipped with its own hydraulic system, taking your seeding process to new levels of efficiency. Save time with the advanced, unloading belt conveyor system that ensures gentle and efficient seed delivery directly into your air seeder.

The six compartment, stainless steel tank is designed to transport seed and fertilizer simultaneously without damage or cross-contamination. At an unload rate of 2 tons/min, fill time is significantly reduced, unloading 1550 cubic feet under 20 minutes.



Features Show / Hide more information

1. Tier 4, diesel engine
2. 6 compartments
3. Stainless steel slave conveyor construction
4. Stainless steel slopes & gates
5. 12 gauge hopper construction
6. Two stage - epoxy/polyurethane coating system
7. 20” wide, slave conveyor belt
8. 25’ long, 16” paddle belt, unload conveyor
9. Self-contained hydraulics
10. Aluminum anodized hydraulic valves
11. Camera package
12. Weigh scale package
13. LED working lights
14. External ladder
15. 2 sight glasses per compartment
16. LED gate indicators
17. Air ride trailer
18. Aluminum outer wheels with polyethylene fenders

Applications Show / Hide more information

1.Grain
2.Seed
3.Fertilizer

Specifications Show / Hide more information

 Model

CST-1550

Discharge Heights Min/Max 8’ 2” @ 15°
18’ 8” @ 40°
Swing Diameter 144° Swing
43’ 2” Reach
Empty Weight 25,060 lb
Ft3 / Comp. (Total) 258.5
(1551)
Units / Comp. * (Total) 320
(1920)
Bushels / Comp. (Total) 208
(1248)
Compartment Capacity ** Imperial 8 Ton
Compartment Capacity ** Metric 7.3 MT
Total Capacity ** Imperial 48 Ton
Total Capacity ** Metric 43.6 MT
