Drive-Over Conveyors

Meridian Mfg. - Drive-Over Conveyors
Features
Applications
Specifications
Accessories

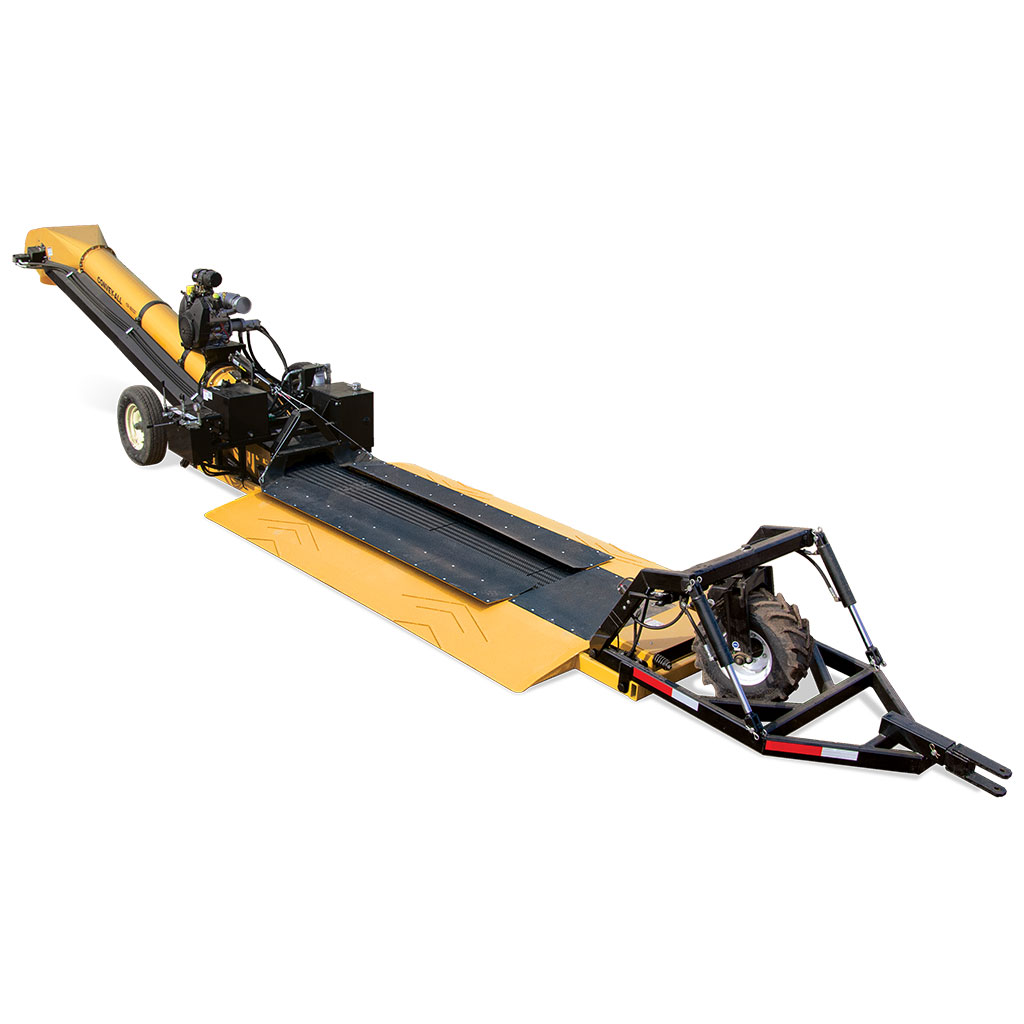

If you’re looking for a fast, efficient way to unload your trailers, a Convey-AllTM Drive-Over Conveyor is your solution. The 5 1/4” high and 12′ long drive over deck is heavy-duty and allows for quick and easy placement. The containment flaps lay flat for driving on and off, then can be raised to hold unloaded product.



Features Show / Hide more information

1. 22” rubber belt inside a 14” tube
2. 5 1/4” high deck for easy drive over
3. Extra large 12’ long deck, to easily position under truck and trailer
4. Containment flaps lay flat to drive over, raise to hold product
5. Optional mover kit

Applications Show / Hide more information

1.Seed
2.Grain
3.Fertilizer

Specifications Show / Hide more information

Model Discharge
Height to Ground
Hopper to Ground Overall Length Hopper Length
1214-GN 36” – 48” 61/2” 15’ 4” 4’ 9”
1615 38” – 48” 61/2” – 73/4” 17’ 4” 5’ 10”
1616-RC 36” – 48” 45/8” 20’ 7’
2218 38” – 48” 61/2” – 73/4” 20’ 2” 5’ 10”
2218-RC 36” – 48” 45/8” 21’ 6” 7’
2228-DO 3’ 2” 8” 29’ 9’ 6”

Accessories & Options Show / Hide more information

1. Electric, gas or hydraulic drive

Media Show / Hide more information

Drive-Over Conveyors
