Paddle Belt Conveyors

Features
Applications
Specifications
Accessories

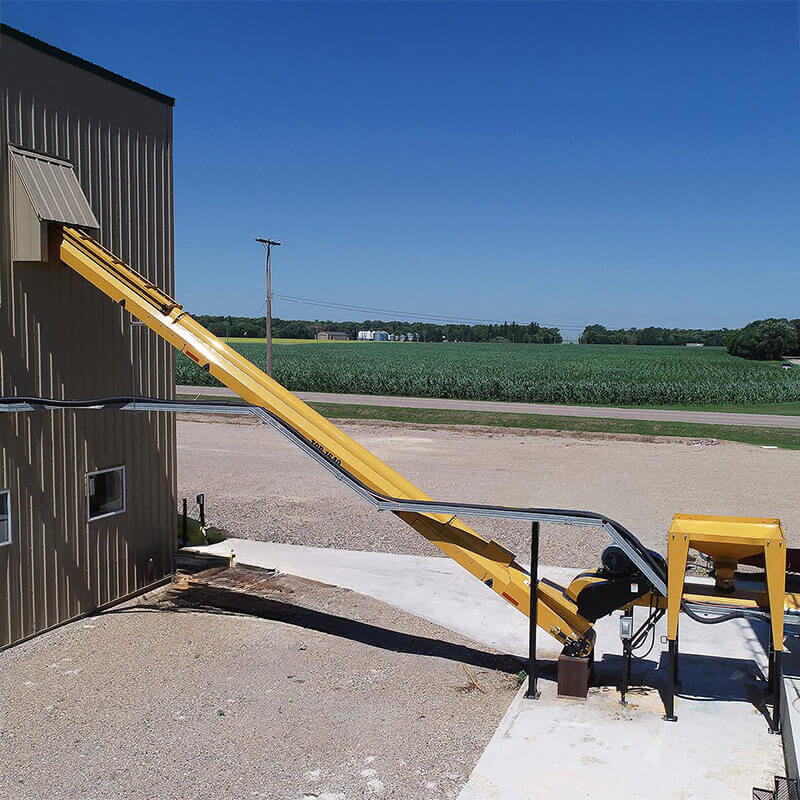

Convey-AllTM Paddle Belt Conveyors greatly increase the angle of operation, up to 40 degrees, while matching the capacity of your seed treater. The belt design is gentle on your seed. Excellent hopper clean-out access and enclosed belt return ensures long belt life. The conveyor is available in either a transport or stationary configuration.



Features Show / Hide more information

1. A-frame undercarriage

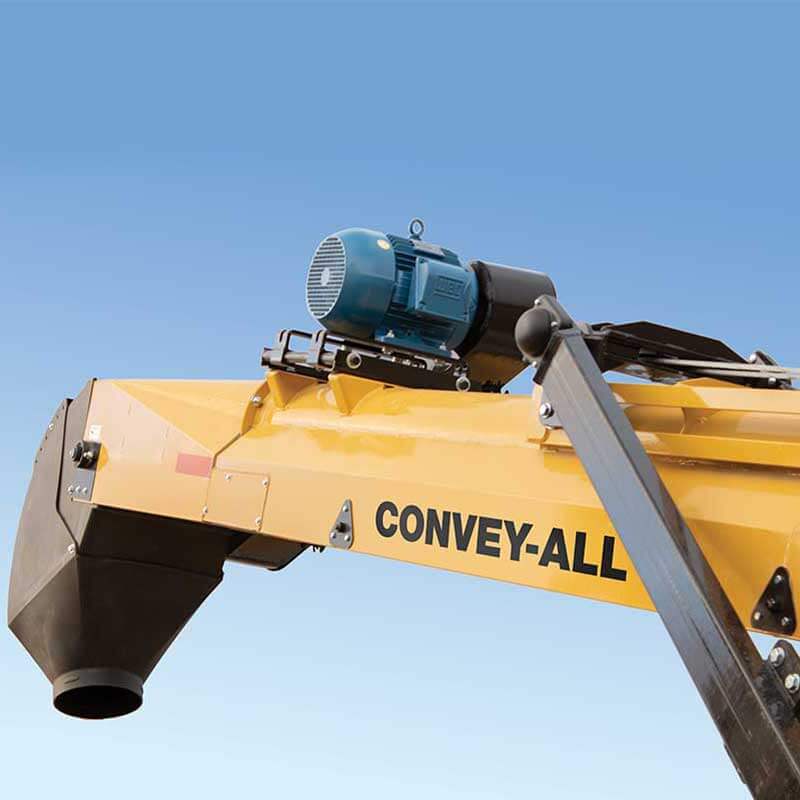

2. Top-end electric drive
3. 10” tube diameter
4. 16” wide paddle belt

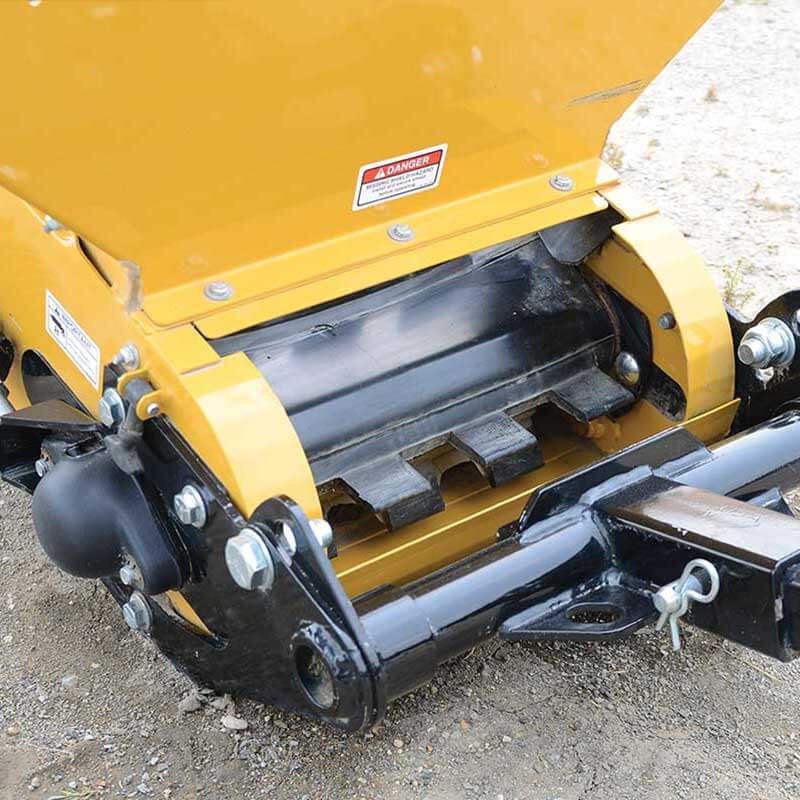

5. Hopper access panel

Applications Show / Hide more information

1.Seed
2.Grain
3.Fertilizer

Specifications Show / Hide more information

1620 Model 1625 Model 1630 Model 1635 Model 1640 Model 1645 Model
Axle Width 6’ 9” 8’ 5” 8’ 5” 8’ 5” 8’ 5” 8’ 5”
Transport Height 6’ 10” 9’ 11” 11’ 9” 12’ 8” 12’ 9” 13’ 4”
Transport Length 24’ 4” 28’ 9” 33’ 4” 38’ 4” 43’ 7” 48’ 7”
30° Discharge Height 8’ 9” 11’ 3” 13’ 9” 16’ 3” 18’ 9” 21’ 3”
30° Length 18’ 2” 22’ 6” 26’ 10” 31’ 2” 35’ 6” 39’ 10”
35° Discharge Height 10’ 3” 13’ 1” 16’ 0” 18’ 10” 21’ 9” 24’ 7”
35° Length 17’ 6” 21’ 7” 25’ 8” 29’ 9” 33’ 10” 38’ 10”
40° Discharge Height 11’ 8” 14’ 11” 18’ 1” 21’ 4” 24’ 6” 27’ 9”
40° Length 16’ 8” 20’ 6” 24’ 3” 28’ 2” 32’ 0” 35’ 9”

Accessories & Options Show / Hide more information

1.

Steel hopper cover

2.

Collapsible hopper
