Stainless Truck Load Conveyors

Features
Applications
Specifications
Accessories

Convey-All™ Truck Load conveyors are great for moving product from the bin to a truck or trailer.

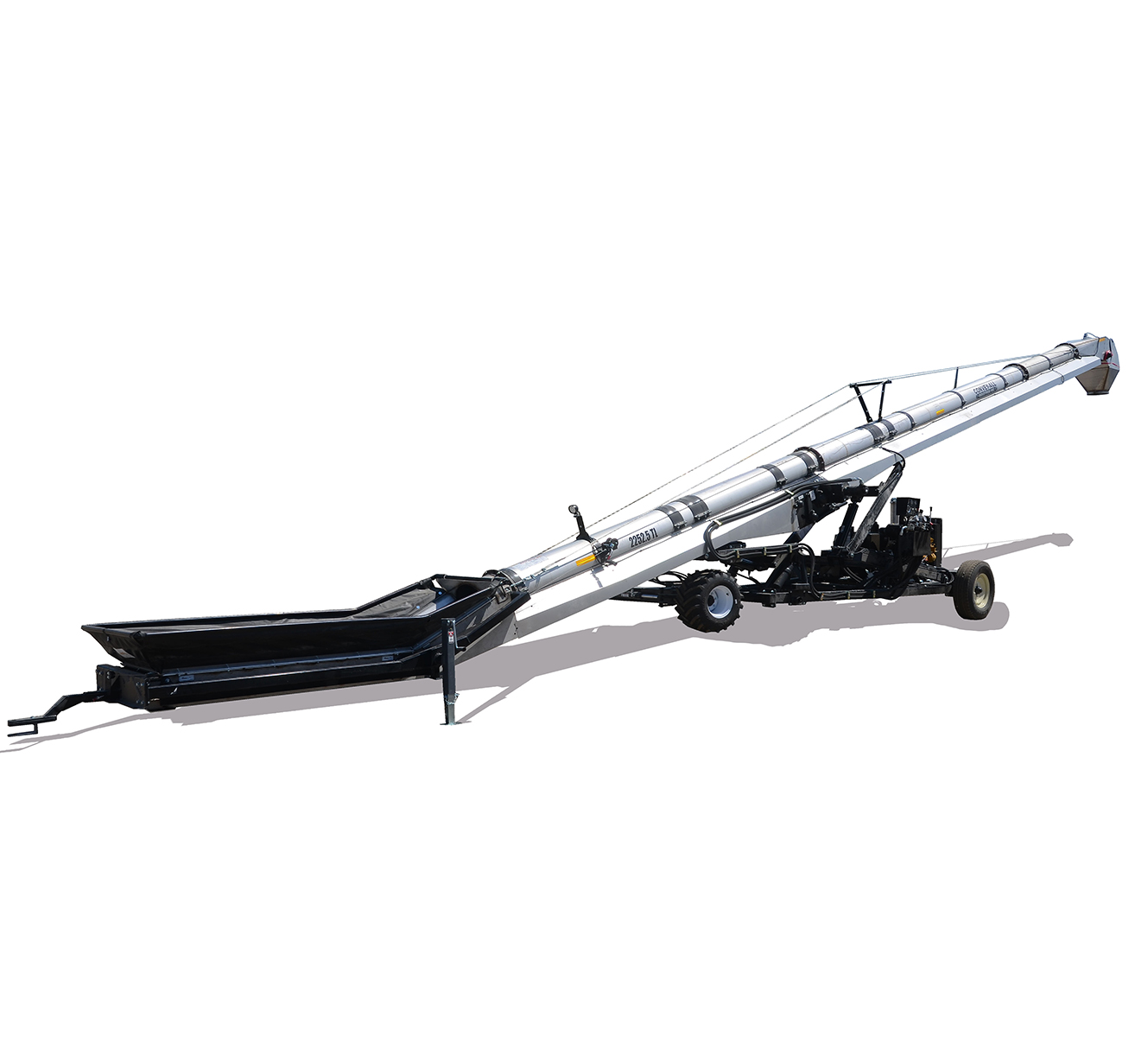

The 1200 series feature a 12’’ belt in a 10’’ tube, a standard or collapsible hopper, and are manufactured in a variety of lengths to meet your needs. The 1200 series offers capacities up to 3,500BPH.

Convey-All™ Stainless Steel Conveyors are fabricated with high quality 304L stainless finish, maximizing longevity while moving corrosive materials. For standard duty mild-steel conveyors with a powder coat finish, click here.

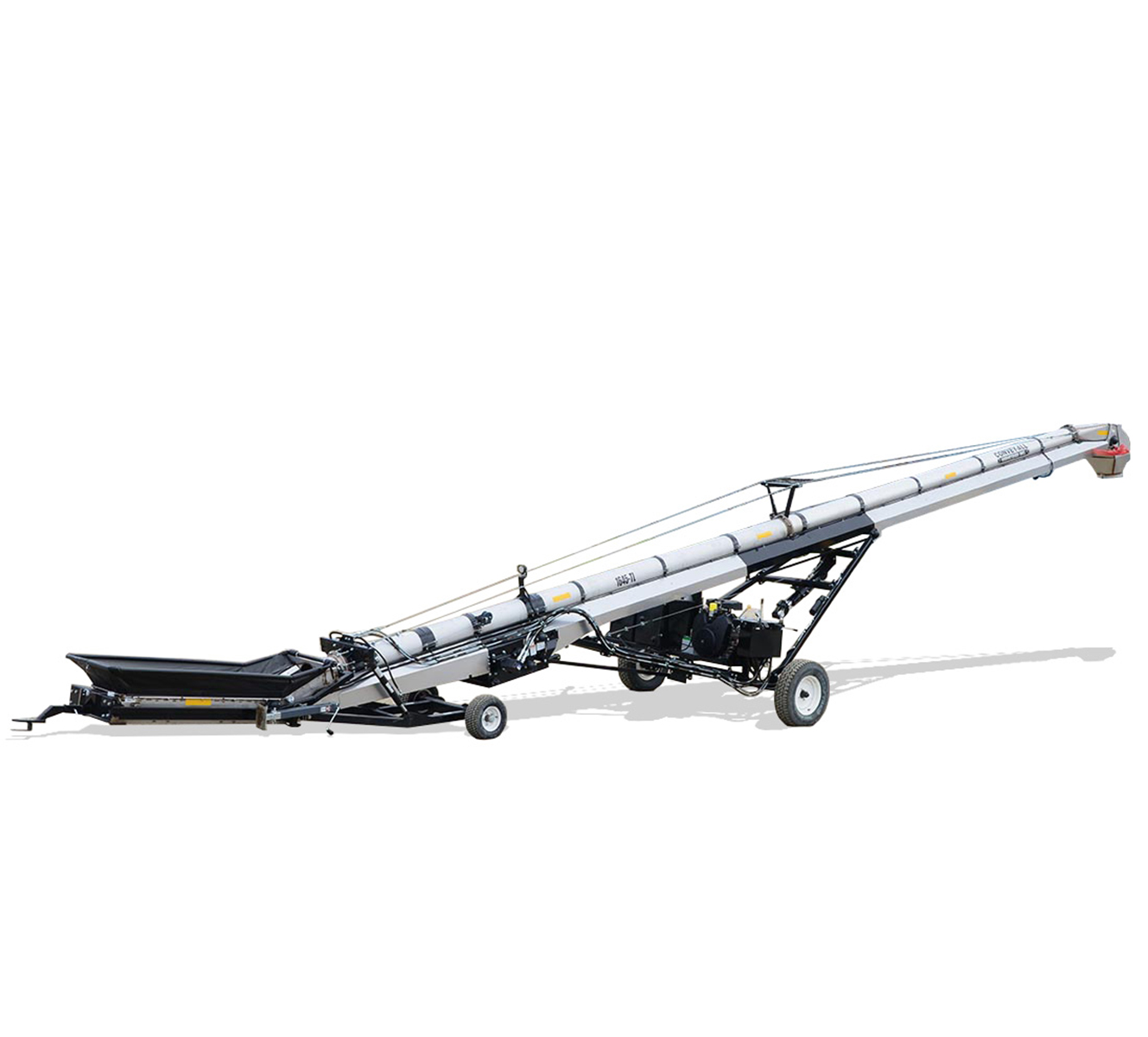

The Convey-All™ 1600 series conveyors are our most popular line of truck loading conveyor. The 1600 features a 16’’ Chevron belt in a 10’’ tube, and offers capacities up to 9,000BPH.

Our fully loaded Truck Load (TL) models are self-propelled, driving the conveyor to the truck. Being self-contained and fully hydraulic, eliminates problematic belts, pulleys, chains or sprockets.

Convey-All™ Stainless Steel Conveyors are manufactured with high quality 304L stainless finish, maximizing longevity while moving corrosive materials. For standard duty mild-steel conveyors with a powder coat finish, click here.

Convey-All™ 2200 series are the fastest and our most rugged conveyors. These conveyors are equipped with a 22’’ Chevron belt in a 14’’ tube, with capacities as fast as 12,000BPH.

The 2200 series are ideal for the commercial operator.  With our fully loaded Truck Load packages and stainless steel construction, the 2200 series are the best option for loading quickly and efficiently.  We offer self-propelled, transportable or permanently fixed options to maximize your commercial loading operation.

Convey-All™ Stainless Steel Conveyors are manufactured with high quality 304L stainless finish, maximizing longevity while moving corrosive materials. For standard duty mild-steel conveyors with a powder coat finish, click here.



Features Show / Hide more information

1. Collapsible hopper
2. Full length windguards
3. Heavy-duty undercarriages
4. Hydraulic lift
5. Spring Tension Drive Box (1600 Series)
6. Positive Pinch Drive Box (2200 Series)

Applications Show / Hide more information

1.Seed
2.Grain
3.Fertilizer

Specifications Show / Hide more information

Model Under Carriage Axle Width Transport Height Transport Length
1235-TED A-Frame 7’ 11” 11’ 9” 37’ 2”
1240-TED A-Frame 7’ 11” 13’ 10” 41’ 9”
1235-FL A-Frame 7’ 11” 8’ 2” 39’ 10”
1245-FL A-Frame 8’ 14’ 2” 42’ 3”
1245 A-Frame 9’ 2” 11’ 2” 49’ 2”
1640-TL A-Frame 8’ 4” 9’ 7” 43’ 9”
1650-TL A-Frame 8’ 4” 11’ 5” 53’ 7”
1658-TL A-Frame 8’ 4” 12’ 10” 60’ 8”
1645 A-Frame 9’ 1” 11’ 8” 50’ 10”
1635-FL A-Frame 7’ 11” 10’ 5” 43’ 7”
1635 A-Frame 8’ 10’ 11” 40’ 8”
1645 A-Frame 9’ 1” 11’ 8” 50’ 10”
2245-TL Scissor Lift 8’ 4” 13’ 6” 51’ 6”
2252.5-TL Scissor Lift 8’ 4” 15’ 4” 58’ 10
2235 A-Frame 8’ 4” 10’ 8” 38’ 8”
2245 A-Frame 9’ 1” 11’ 3” 48’ 9”
Model Discharge Height Ground Length
1235-TED n/a n/a
1240-TED n/a n/a
1235-FL n/a n/a
1245-FL n/a n/a
1245 11’ 5” 44’ 7”
1640-TL n/a n/a
1650-TL n/a n/a
1658-TL n/a n/a
1645 10’ 10” 45’ 6”
1635-FL n/a n/a
1635 n/a n/a
1645 10’ 10” 45’ 6”
2245-TL n/a n/a
2252.5-TL n/a n/a
2235 n/a n/a
2245 10’ 5” 43’ 8”
Model Discharge Height Ground Length
1235-TED 11’ 1” 33’ 10”
1240-TED 13’ 11” 38 7”
1235-FL 10’ 3” 33’ 11”
1245-FL n/a n/a
1245 15’ 5” 43’ 7”
1640-TL 10’ 7” 40’ 9”
1650-TL 14’ 5” 46’
1658-TL 17’ 53’
1645 14’ 11” 44’ 7”
1635-FL 10’ 5” 30’ 7”
1635 12’ 37’ 1”
1645 14’ 11” 44’ 7”
2245-TL 12’ 2” 49’ 1”
2252.5-TL 15’ 9” 58’ 7”
2235 10’ 11” 33’ 6”
2245 14’ 3” 42’ 10”
Model Discharge Height Ground Length
1235-TED 14’ 32’ 11”
1240-TED 17’ 11” 37’ 6”
1235-FL 13’ 5” 33’
1245-FL 18’ 42’ 3”
1245 19’ 3” 42’ 4”
1640-TL 14’ 39’ 10”
1650-TL 18’ 8” 44’ 8”
1658-TL 21’ 10” 51’ 6”
1645 18’ 11” 43’ 5”
1635-FL 13’ 3” 29’ 10”
1635 15’ 1” 35’ 10”
1645 18’ 11” 43’ 5”
2245-TL 16’ 3” 47’ 9”
2252.5-TL 20’ 7” 56’ 11”
2235 13’ 11” 32’ 8”
2245 18’ 1” 41’ 8”
Model Discharge Height Ground Length
1235-TED 16’ 10” 31’ 10”
1240-TED 21’ 2” 35’ 11”
1235-FL 16’ 6” 31’ 10”
1245-FL 21’ 10” 40’ 8”
1245 23’ 40’ 8”
1640-TL 17’ 4” 38’ 4”
1650-TL 22’ 10” 43’
1658-TL 26’ 7” 49’ 6”
1645 22’ 9” 41’ 10”
1635-FL 15’ 11” 28’ 10”
1635 18’ 1” 34’ 5”
1645 22’ 9” 41’ 10”
2245-TL 19’ 9” 46’ 3”
2252.5-TL 24’ 6” 55’ 2”
2235 16’ 9” 31’ 7”
2245 21’ 9” 40’ 2”

Accessories & Options Show / Hide more information

1. FIELD LOADER (FL) PACKAGE:
  • Stainless steel components
  • Cold weather pkg (35hp gas engine)
  • Heavy-duty, Railcar Hopper
2. TRUCK LOAD (TL) PACKAGE:
  • Self-contained drive system
  • Heavy duty mover kit
  • Steering wheel(s) with hydraulic hopper lift
  • Steel fuel tank, hydraulic oil reservoir
  • Highway tires
  • Discharge hood with electric actuator
3. TRUCK LOAD (TL) OPTIONS:
  • Diesel engine (22’’ conveyors)
  • Stainless steel components
  • Hydraulic oil reservoir heater
  • Fender and light package
  • 2-5/16” ball receiver hitch
  • Quad-adjust hood package
  • Heavy-duty, Railcar Hopper

Calculators Show / Hide more information

Conveyor Length Calculator
  1. Conveyor Angle (A)
  2. Required Height (B)
