Truck Mount Seed Tenders

Features
Applications
Specifications
Accessories

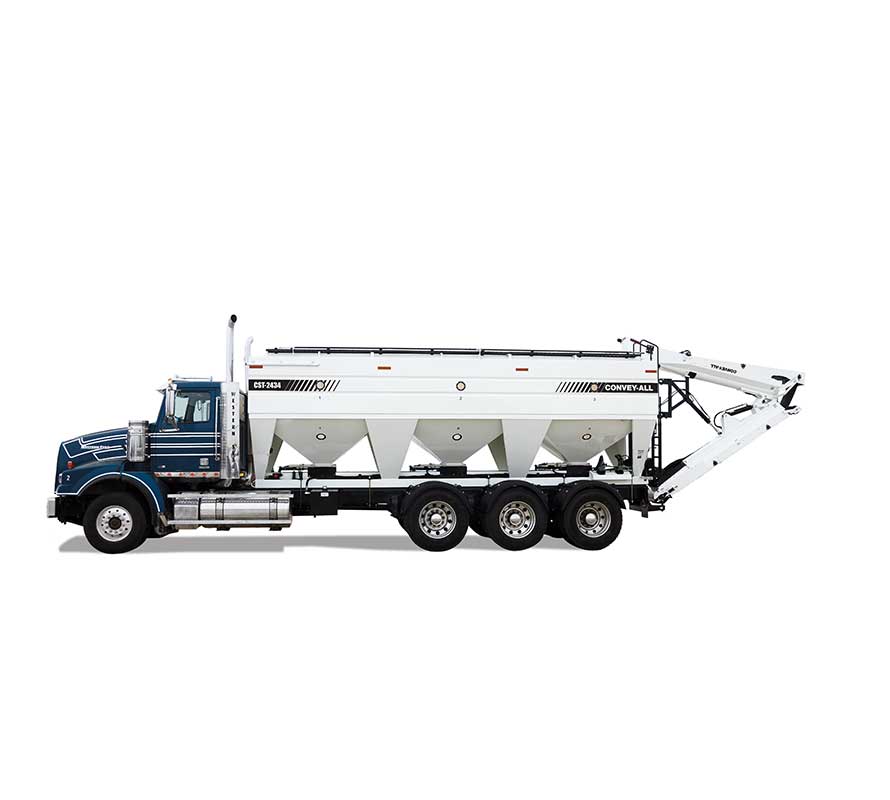

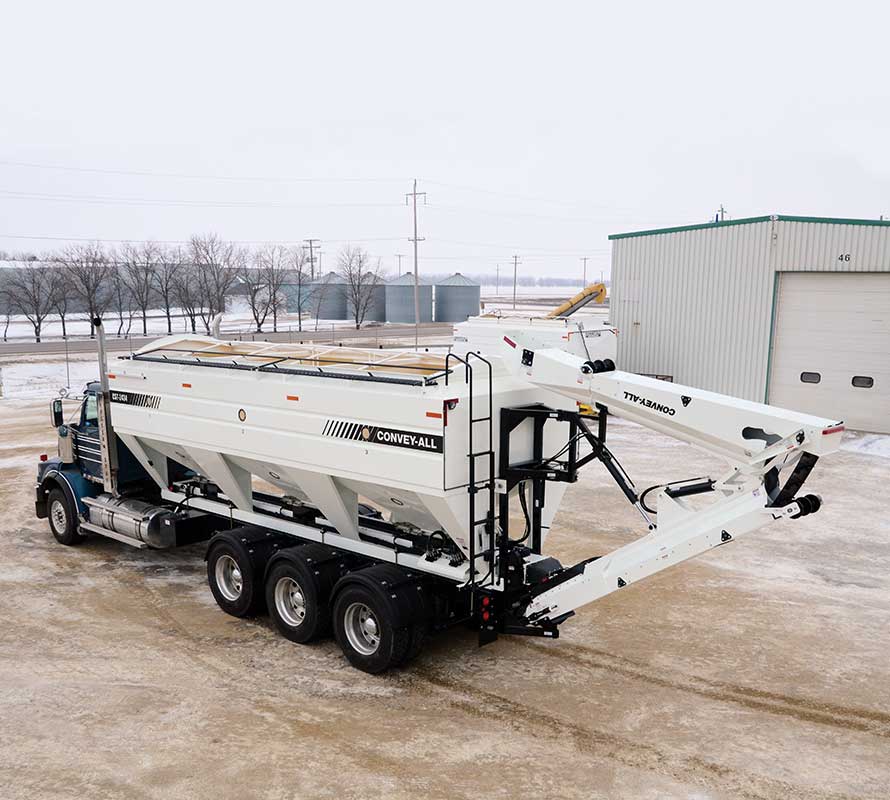

The Convey-AllTM Truck-Mounted Series of Commercial Seed Tenders (CST) can be used to fill floaters, fertilizer spreaders, lower air seeder commodity carts and more. The multiple compartment design allows a variety of different products to be hauled on the same trip.

Using the unload conveyor system minimizes the risk of cross-contamination or product damage. Available in four different tank lengths, this series is designed to mount on your standard 34” truck frame.



Features Show / Hide more information

1. Manufactured for a 34” rail mount
2. 34” frame mounting equipment included
3. 12 gauge compartment construction
4. Stainless steel hopper slopes and gates
5. 20’ long, 10” diameter tube
6. 16” wide paddle belt, unload conveyor
7. Full length catwalk and rear ladder
8. 2 sight glasses per compartment
9. High quality electric roll tarp
10. Manual hydraulic controls
11. Two stage - epoxy/polyurethane coating system

Applications Show / Hide more information

1.Seed
2.Grain
3.Fertilizer

Specifications Show / Hide more information

CST-1634 Model CST-1834 Model CST-2034 Model CST-2434 Model
Length 27’ 3” 29’ 4” 31’ 3” 35’ 4”
Width 8’ 8’ 8’ 8’
Height*** 13’ 8” 13’ 8” 13’ 8” 13’ 8”
Discharge
Heights*** Min/Max
9’ 9” @ 23°
11’ 10” @ 30°
9’ 9” @ 23°
11’ 10” @ 30°
9’ 9” @ 23°
11’ 10” @ 30°
9’ 9” @ 23°
11’ 10” @ 30°
Swing Diameter 80° Swing
25’ 7” Reach
80° Swing
25’ 7” Reach
80° Swing
25’ 7” Reach
80° Swing
25’ 7” Reach
Empty Weight 5200 lb 5800 lb 6300 lb N/A
# of Comp. 2 3 3 3
Ft3 / Comp.
(Total)
294
(588)
221
(663)
2 – 221
1 – 294
(736)
294
(882)
Units / Comp. *
(Total)
365 ea.
(730)
274 ea.
(822)
2 x 274
1 x 365
(913)
365 ea.
(1095)
Bushels / Comp.
(Total)
236 ea.
(472)
178 ea.
(534)
2 x 178
1 x 236
(592)
236 ea.
(708)
Compartment Capacity ** Imperial 9.1 Ton ea. 6.9 Ton ea. 2 x 6.9 Ton
1 x 9.1 Ton
9.1 Ton ea.
Compartment Capacity ** Metric (8.3 MT ea.) (6.2 MT ea.) (2 x 6.2 MT)
(1 x 8.3 MT)
8.3 MT ea.
Total Capacity ** Imperial 18.2 Ton 20.7 Ton 22.9 Ton 27.3 Ton
Total Capacity ** Metric (16.6 MT) (18.6 MT) (20.7 MT) (24.9 MT)



Table is base on liquid measurements, and does not account for piling above the side walls.

* Measurements based on 48” high truck bed.
** Units based on 50 lb/unit.
*** Capacity based on 62 lb/ft3.
The width indicated does not include the truck width.

Truck-mounted tenders not available in all regions


Accessories & Options Show / Hide more information

1.

Self-contained hydraulic pack

2.

Stainless steel conveyor(s)

3.

Wireless remote control

4.

Polyethylene fenders

5.

Fender mounts
