WT-295

Meridian Mfg. - WT-295
Features
Applications
Specifications
Accessories

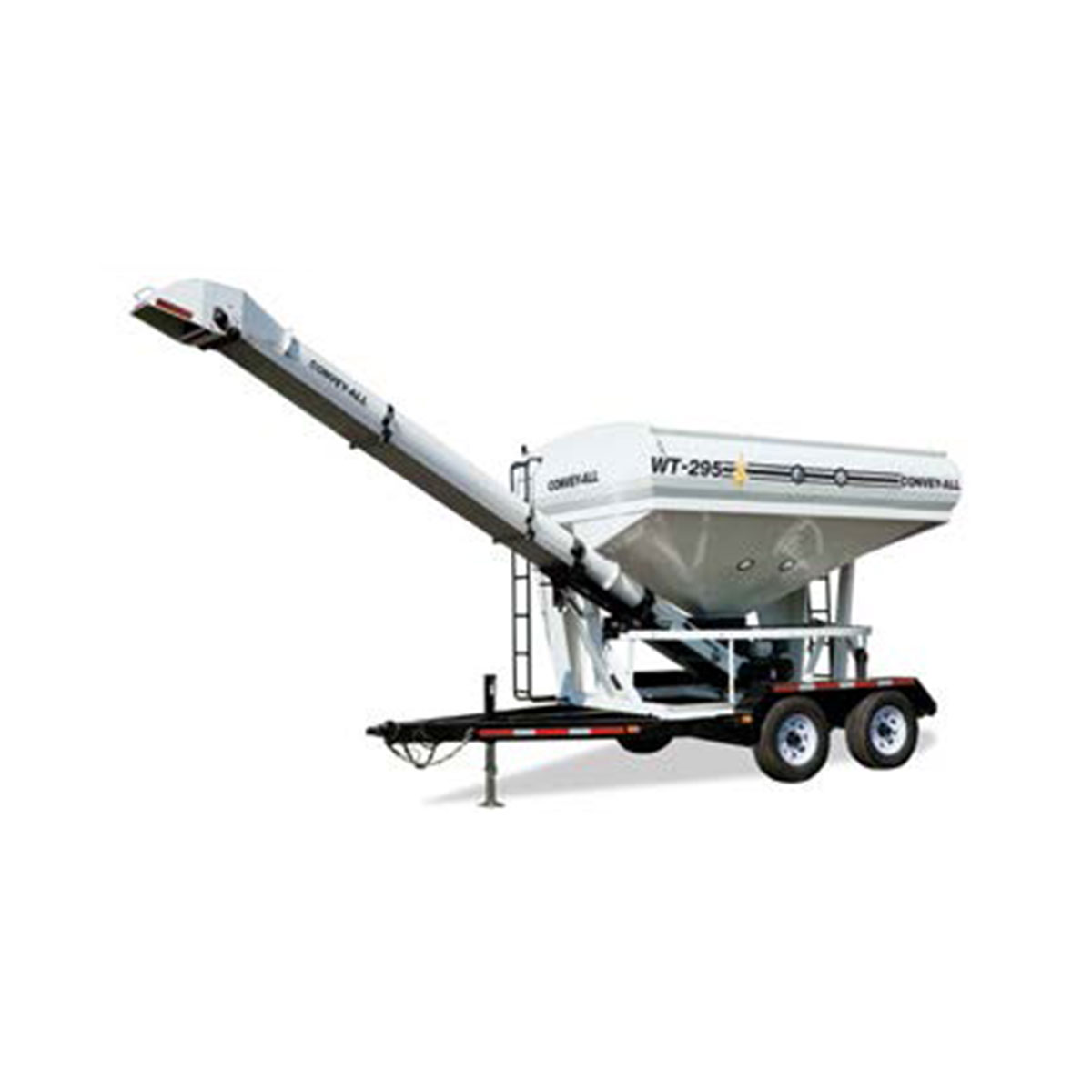

This weigh tender features a 20′ long conveyor, 10″ tube and 16″ belt, unloading high capacities up to 3500 LBS/MIN.

Choose a fifth wheel or bumper hitch trailer integrated with a scale ready to transport seed or fertilizer to the field.



Features Show / Hide more information

1. 13 hp gas engine
2. Manual roll tarp
3. 2 button remote control
4. Ladders, front and rear

Applications Show / Hide more information

1.Seed
2.Fertilizer
3.Load Planters

Specifications Show / Hide more information

Model PT-100 BTS-115 WT-295 BTS-2950 BTS-410
Conveyor Size 21’, 8” Tube, 10” Belt 18’, 8” Tube, 10” Belt 20’, 10” Tube, 16” Belt 21’, 8’ Tube, 10” Belt 8’ Tube, 10” Belt
Overall Length 32’ 2” 22’ 2” 25’ 3” 24’ 7” 26’ 1”
Hopper Length 8’ 3” 7’ 11’ 11” 11’ 11” 14’ 6”
Hopper Height n/a 7’ 5” 8’ 7” 8’ 5” 9’ 3”
Hopper Width n/a 7’ 8’ 5” 8’ 5” 8’ 5”
Discharge Height 8’ 11” 8’ 3” 9’ 7” 8’ 3” 8’ 5”
Conveyor Height 12’ 7” 10’ 12’ 6” 10’ 12’ 2”
Conveyor Swing 180° 90° 140° 140° 140°
Empty Weight (Trailer Not Incl.) 1550 lb 2125 lb 2950 lb 3000 lb 3250 lb
Total Units 100 115 295 295 410
Total Bushels 80 92 235 235 330

The WT-295 Tender has a 50/50 split compartment, and features a 16” wide belt which can unload 3500 lb/min.

BTS = Bean Tender-Swing | WT = Weigh Tender | PT = Pro-Box Tender


Accessories & Options Show / Hide more information

1. Full wireless remote
2. Weigh scale package
3. Trailer with electric brakes
