DRIVE-OVER SAND CONVEYORS

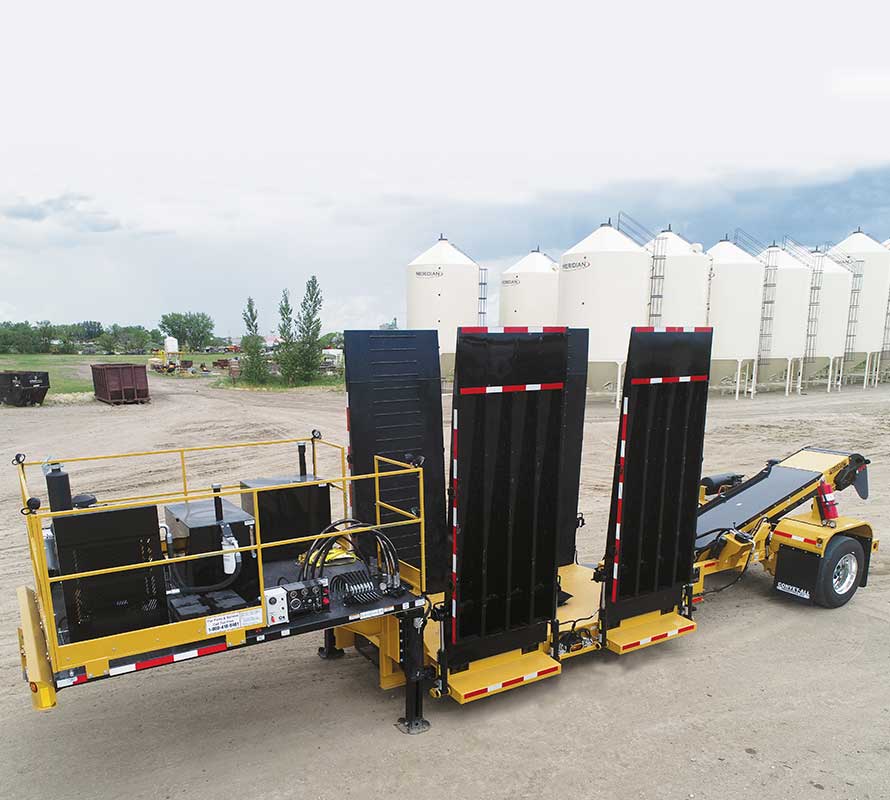

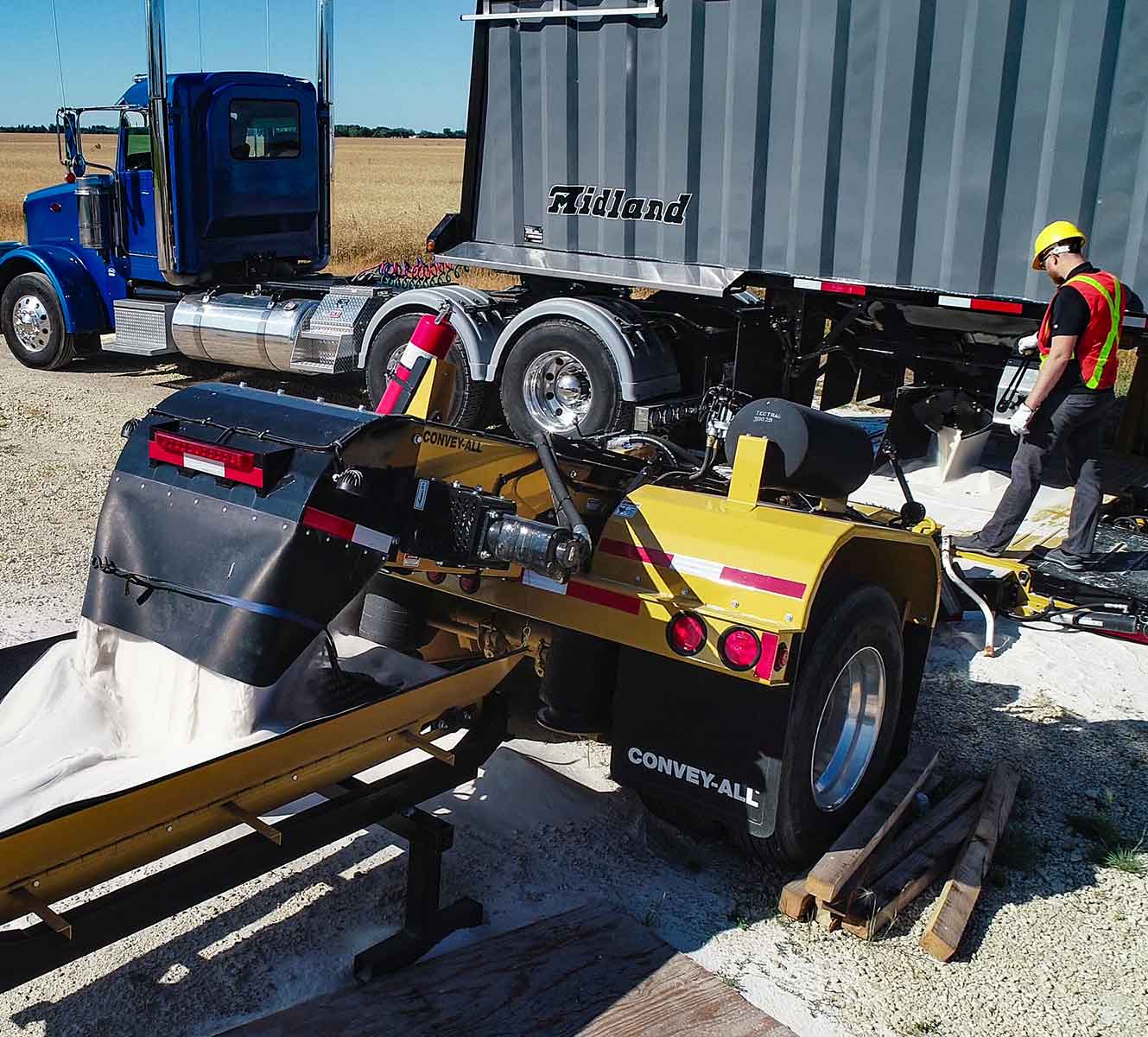

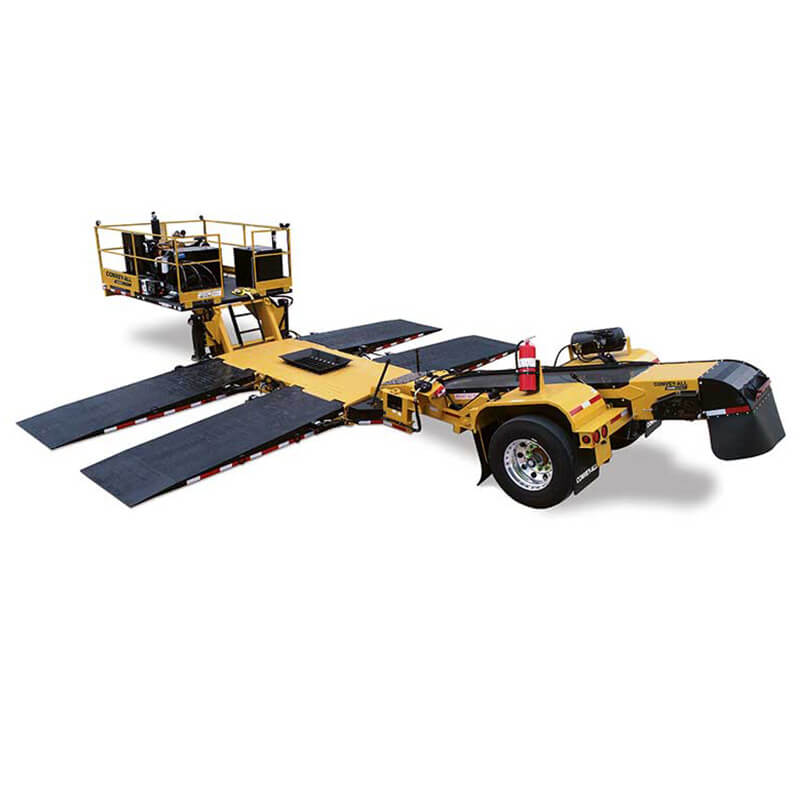

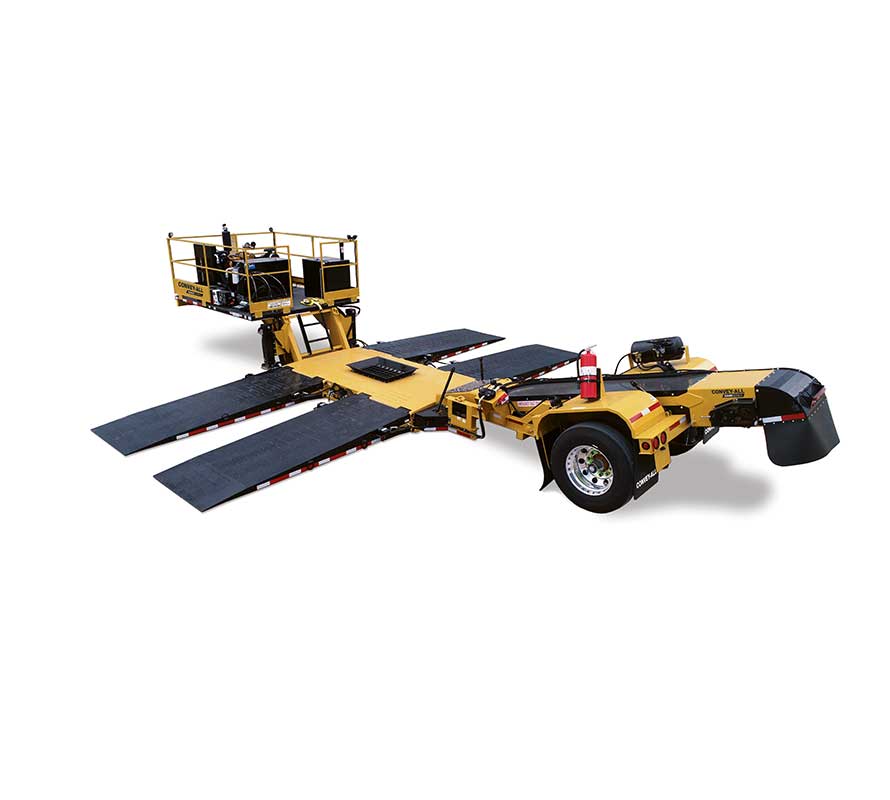

The Convey-All™ FSDO (Frac Sand Drive Over) is the ultimate drive-over conveyor for frac sand. The extra wide, 12-foot drive-over deck fits perfectly under trucks and trailers. The 29-inch wide belt has a capacity of 22,000 lbs. of sand per minute. The ramps can be raised quickly into transport position to easily move from site to site.

Resources Request Information

Model	Discharge Height to Ground	Hopper to Ground	Overall Length	Hopper Length
1214-GN	36″ – 48″	6 1/2″	15′ 4″	4′ 9″
1615	36″ – 48″	6 1/2″ – 7 3/4″	17′ 4″	5′ 10″
1616-RC	36″ – 48″	4 5/8″	20′	7′
2218	36″ – 48″	6 1/2″ – 7 3/4″	20′ 2″	5′ 10″
2218-RC	36″ – 48″	4 5/8″	21′ 6″	7′
2228-DO	3′ 2″	8″	29′	9′ 6″

Tier 4 diesel engine
35 GPM hydraulic pump
100 US Gallon (378 Litre) fuel tank
118 US Gallon (447 Litre) hydraulic oil reservoir
6000 series hydraulic motor
All manual valves and operation
Heavy duty, 330 lb, 3 ply belt w/ Super Screw® lacing
Air ride suspension
Sealed, Dodge bearings are used

Stainless steel components

Contact Meridian Manufacturing regarding to Sand Conveyor Warranty.
