DRIVE-OVER TRANSFER CONVEYORS

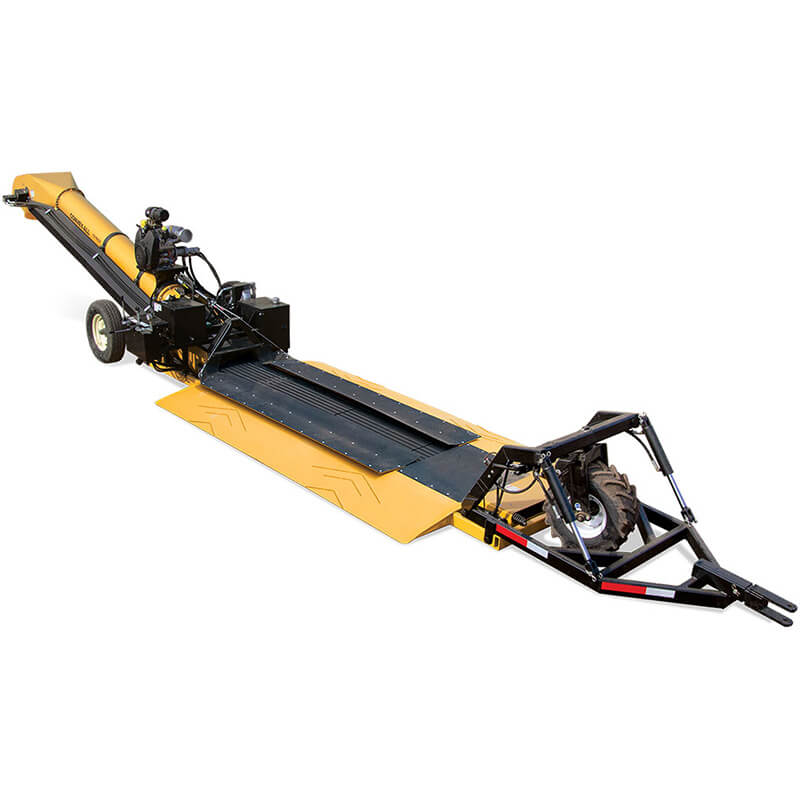

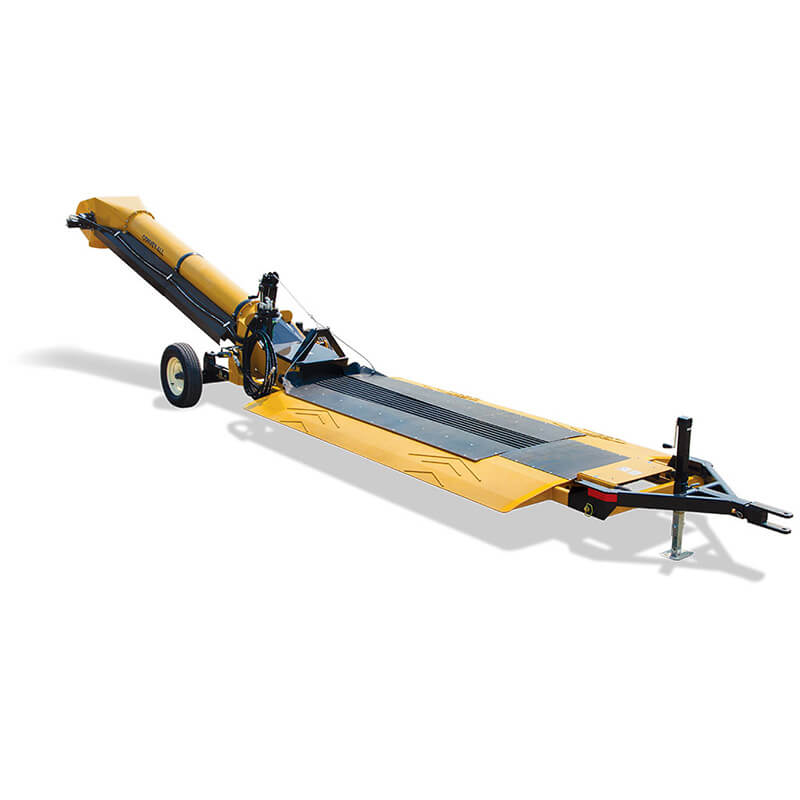

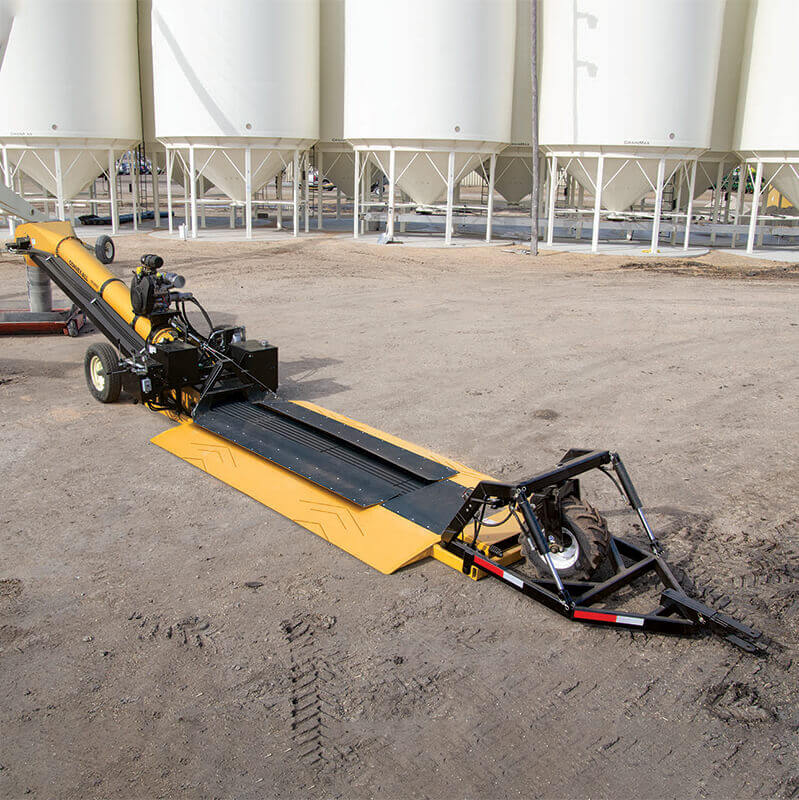

If youre looking for a fast, efficient way to unload your trailers, a Convey-All Drive-Over Conveyor is your solution. The 5 1/4 inch high and 12 foot long drive over deck is heavy-duty and allows for quick and easy placement. The containment flaps lay flat for driving on and off, then can be raised to hold unloaded product.

Resources Request Information

Rebates On Now, Click For Details

Model	Discharge Height to Ground	Hopper to Ground	Overall Length	Hopper Length
1214-GN	36″ – 48″	6 1/2″	15′ 4″	4′ 9″
1615	36″ – 48″	6 1/2″ – 7 3/4″	17′ 4″	5′ 10″
1616-RC	36″ – 48″	4 5/8″	20′	7′
2218	36″ – 48″	6 1/2″ – 7 3/4″	20′ 2″	5′ 10″
2218-RC	36″ – 48″	4 5/8″	21′ 6″	7′
2228-DO	3′ 2″	8″	29′	9′ 6″

22” rubber belt inside a 14” tube
5-1/4” high deck for easy driving over
Extra large 12’ long deck, to easily position truck and trailer
Containment flaps lay flat to drive over, raise to hold product

Electric, gas or hydraulic drive

Meridian Manufacturing warrants all new, unaltered tube conveyors intended for standard or on-farm usage against defects in material or workmanship for a period of one year from the date of purchase. For equipment used in commercial applications, Meridian provides a warranty against defects and workmanship for a period of 90 days.

For components not manufactured by Meridian, such as tires, engines, batteries, etc., please refer to the respective manufacturer for the applicable warranty information. Additional details can be obtained by contacting your authorized Meridian/Convey-All dealer or consulting your owner’s manual.
